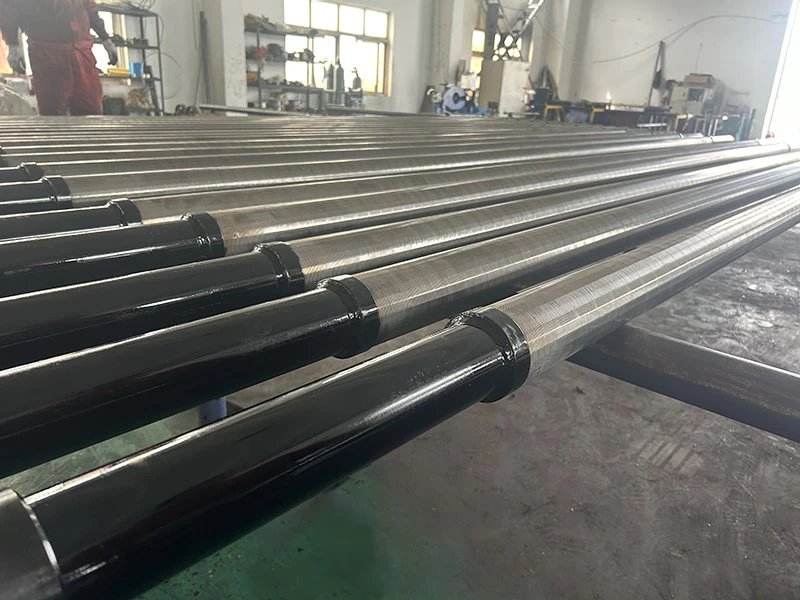

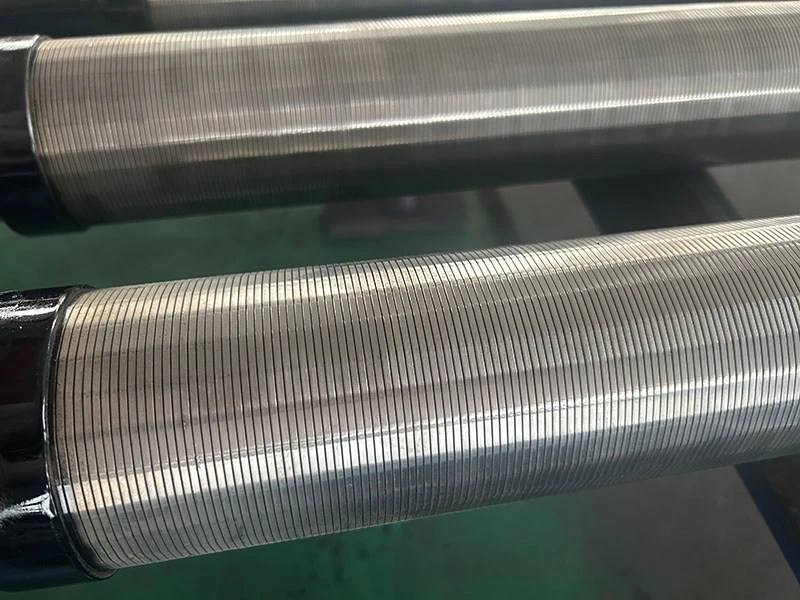

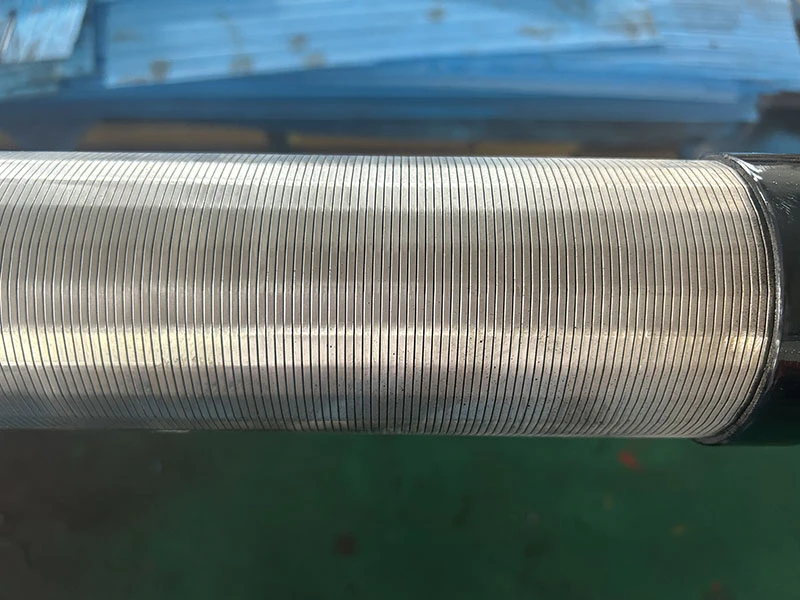

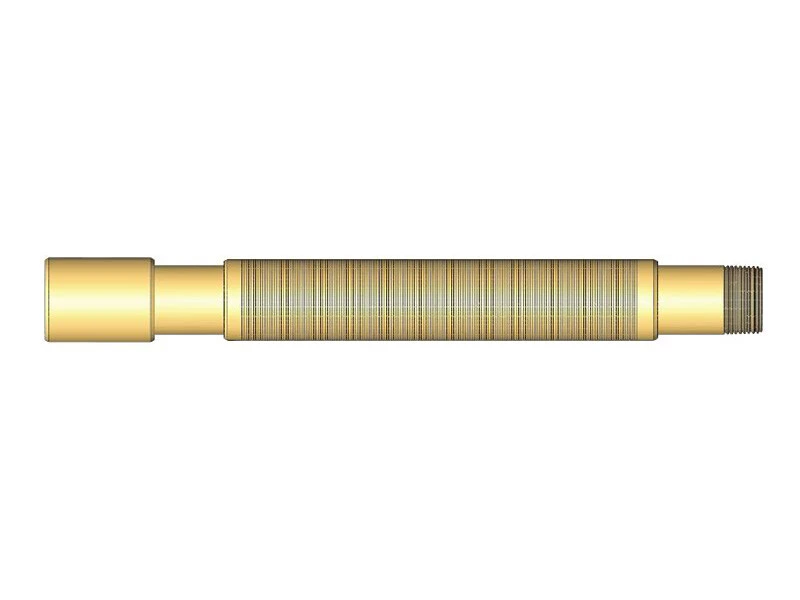

The sand-filtering part of the wire-wrapped screen pipe is the screen cylinder. The screen bars are welded to the ribs around the circumference by resistance welding in a point contact manner, and then welded together with the end joint at both ends to form the screen cylinder. The perforated base pipe is inserted into the screen cylinder and welded together again to form a complete wire-wrapped screen pipe. The gap between two rows of screen bars is the screen opening, which plays a key role in filtering the produced fluid while blocking the movement of formation sand or proppant.

Technical features

• has a strong structure, high tensile strength and resistance strength;

• Corrosion resistance, can work at high temperature, anti-clogging;

• has accurate slit size, large opening area, and easy backwash;

• Sizes of wire winding and support strips can be customized.

Application:

• Suitable for oil and gas Wells with a median oil sand particle size ≥0.08mm and serious sand production degree; Ø

• Not applicable to inclined Wells or horizontal Wells ≥60°.

Technical parameter
