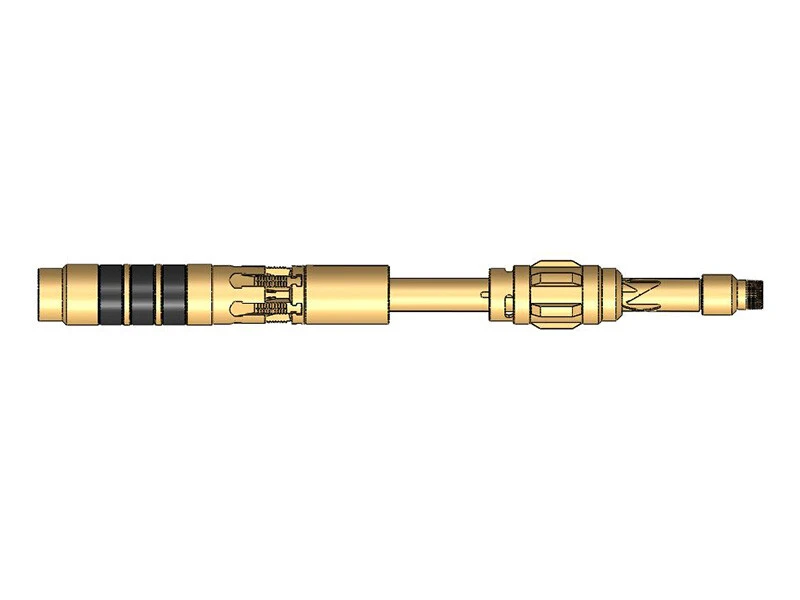

Y211 Packer

Y211 Packer
This packer is a kind of packer with up-lift-down seating and up-lift-unsealing.

Seating and unsealing are flexible, reliable and easy to operate;

High performance rubber cylinder.
Get A Quote

Technical advantage

This packer is a kind of packer with up-lift-down seating and up-lift-unsealing.

  • Seating and unsealing are flexible, reliable and easy to operate;

  • High performance rubber cylinder.


Usage

This tool is used in combination with other tools for oil and water wells in the processes of water finding, leakage finding, water plugging, water control, oil testing, parting, sand prevention, fracturing, acidizing and so on.


Technical parameter

Type

Y211-115

Y211-150

Y211-208

Maximum outer diameter of steel body(mm)

φ115

φ150

φ208

Minimum diameter of steel body(mm)

φ48

φ61

φ76

Buckle type for both ends

27/8〞NU

27/8〞NU

31/2〞NU

work pressure(MPa)

30

30

30

operating temperature(℃)

<120、<150

<120、<150

<120、<150

commutation distance(mm)

750

750

750

sitting power(t)

8-10

8-10

8-10

Unsealing Method

lift a blockade

lift a blockade

lift a blockade

Technical advantage

This packer is a kind of packer with up-lift-down seating and up-lift-unsealing.

  • Seating and unsealing are flexible, reliable and easy to operate;

  • High performance rubber cylinder.


Usage

  • This tool is used in combination with other tools for oil and water wells in the processes of water finding, leakage finding, water plugging, water control, oil testing, parting, sand prevention, fracturing, acidizing and so on.


 Technical parameter

型号

Y211-115

Y211-150

Y211-208

钢体最大外径(mm)

φ115

φ150

φ208

钢体最小通径(mm)

φ48

φ61

φ76

两端连接扣型

27/8〞NU

27/8〞NU

31/2〞NU

工作压力(MPa)

30

30

30

工作温度(℃)

<120、<150

<120、<150

<120、<150

换向距(mm)

750

750

750

坐封力(t)

8-10

8-10

8-10

解封方式

上提解封

上提解封

上提解封
